Thursday, May 27, 2010

Direct Jump to Sheet from Section Mark

I just found a very interesting trick. Have you ever wanted to jump directly to a sheet in Revit, from a section or elevation reference mark? Usually, if you double click a section mark, it will take you to the relevant View, not the Sheet that the View is on.

However, IF the Sheet is open AND the View is 'activated' on the Sheet (right click, Activate view), then when you jump to the View from the Section mark, Revit will actually take you to the 'Activated' view on the Sheet!

Pretty cool huh?

Wednesday, May 26, 2010

Locking Parameters in the Family Editor

A new feature in Revit 2011 allows you to 'lock' or 'unlock' parameterised dimensions in the Family Editor.

In practice, this allows you to instantly flex a family without having to open the Type Properties dialog box.

'Flexing' means to test the relationships and parameters in a family by adjusting the dimensions within that family. If something breaks, you know that you have a problem. You should always flex families within the family environment, before unleashing them on a project.

Monday, May 24, 2010

How to Reset the 2010 User Interface

If you are having problems related to the Ribbon or the dockable palettes in 2010, you should start by resetting the user interface:

You would like to reset the Autodesk® Revit® Architecture 2011 user interface (i.e. the Ribbon, Quick Access Toolbar, and Project Browser) back to the out-of-the-box version and remove any customization that has been applied.

Download and run the following script on your computer:

autodesk_revit_architecture_ui_reset_2011.vbs (vbs - 6Kb)

More instructions here

Is this blog Boring?


It seems there is either a technical problem, or people are un-subscribing from my blog.

If you are bored by this blog, please let me know.

And if you are having some technical problem with the Feed, it would be great if you could contact me and let me know.

Wednesday, May 19, 2010

Superfast Project Browser Sorting

A sure-fire way to become more productive when using Revit is to utilise the Project Browser effectively. It can allow you to quickly find and navigate your project, instead of laboriously searching for views or families.

In Revit 2011, you can use the persistent Properties Palette to quickly sort the Project Browser views.
  1. Click on top-level of Browser (Views...)
  2. Click on Properties Palette and choose option.


This method also works when sorting Sheets in the Project Browser.

The above post assumes that you know how to create new sort groups for the Project Browser. If you don't, have a look at this page.

Tuesday, May 18, 2010

Revit 2011 Secret #13 - Replicate Window

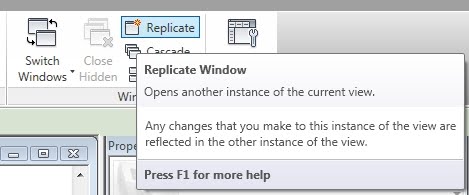

There is a sneaky command in Revit 2011 called 'Replicate Window'. It is NOT the same as Duplicate View. Instead, this opens another instance of the current view in a new window. It is on the View Ribbon, Windows panel:


I actually thought this was new in 2011, but when I checked Revit 2010 it was there too. However, the 2010 documentation did not show anything when searching for 'Replicate'. The 2011 documentation is a little more helpful:

To open a second window for the current view, click View tab, Windows panel (Replicate). This tool is useful if you want to pan and zoom on certain areas of the design, while also viewing the entire design in another window. (Use the Tile tool to see both views at the same time.) Any changes that you make to the project in the new window also display in other windows of the project. (Expand the Manage Views part at this link).

Wednesday, May 12, 2010

Tuesday, May 11, 2010

RATAS Repost - Crazy Dimension Strings

Having trouble overriding dimensions to windows?

http://rvit.wordpress.com/2010/05/05/crazy-dimensions-strings/

Waterfront Villa - Dimond Architects


Project Gallery

Contact Us

Revit In Work Fast Now You

Productivity tip for loading families:
  1. Open a new Explorer window and browse to the location of your Families (or the Metric Library)
  2. Use Vista 'Search' to quickly find the family you want to load.
  3. Multi-select (using Ctrl) the files you want to load and drag them to Revit.
  4. Release your mouse button while over the Revit window.
  5. Revit has now loaded your families (and upgraded them if necessary)!

Friday, May 7, 2010

Assertive BIM

I learnt something interesting yesterday. I learned the difference between being Aggressive, Passive and Assertive.

An Aggressive person will totally disregard your opinion and basically 'bite your head off'. On the other hand, a Passive person won't speak up even if they feel strongly about something. But -

An Assertive person Listens to and Acknowledges the opinions of others, and then respectfully but firmly Expresses their own opinion.

In practice - let's say 3 people like 3 different colours. Mr Aggressive says 'Red is the best colour and you are all idiots if you don't agree with me!' Mr Passive loves Yellow, but he meekly nods. Mr Assertive says, 'I respect the fact that you like Red. However, I personally like the colour Green.'

Mr Assertive does not need others to change - he just shows respect and wants to be respected. His beliefs are not dependent on forcing others to change.

When it comes to BIM, the 'aggressive' stance is often taken (AutoCAD is rubbish!) However, perhaps a more successful tactic would be to truly Listen, Acknowledge, and then firmly express why You believe in BIM.

Wednesday, May 5, 2010

Revit 2011 Secret #12 - Ambient Occlusion Tip

One of the Most Viewed Knowledge Base Issues relates to the inability to print using the 'Ambient Occlusion' option.

There is a very simply way to get around this. Just use 'Print Screen' on your keyboard when you have a view using Ambient Occlusion open on your screen. Then paste the image into Irfanview (or your viewer of choice), crop it and then resize to get the DPI that you want.


This is obviously not an elegant way to go about things, but for the time being, it works :-)

Tuesday, May 4, 2010

buildz: Wall Trimming Method

Awesome post from Zach at this link.

This is kinda what I alluded to back in my post about Adaptive Components (when I said there would be some 'neat workarounds and tricks' coming out).

This certainly is a 'neat workaround' isn't it? It demonstrates the power of adaptive components, along with an understanding of Revit Categories (in this case, the 'Cut Dominance' of Structural Columns is exploited). Zach certainly and repeatedly discourages the use of this method, but provided you have an understanding of the 'cons' of this level of hack, you should be ok.

If you understand 'What Revit Wants' when it comes to Categories, you too can come up with similar tricks to Zach's.
